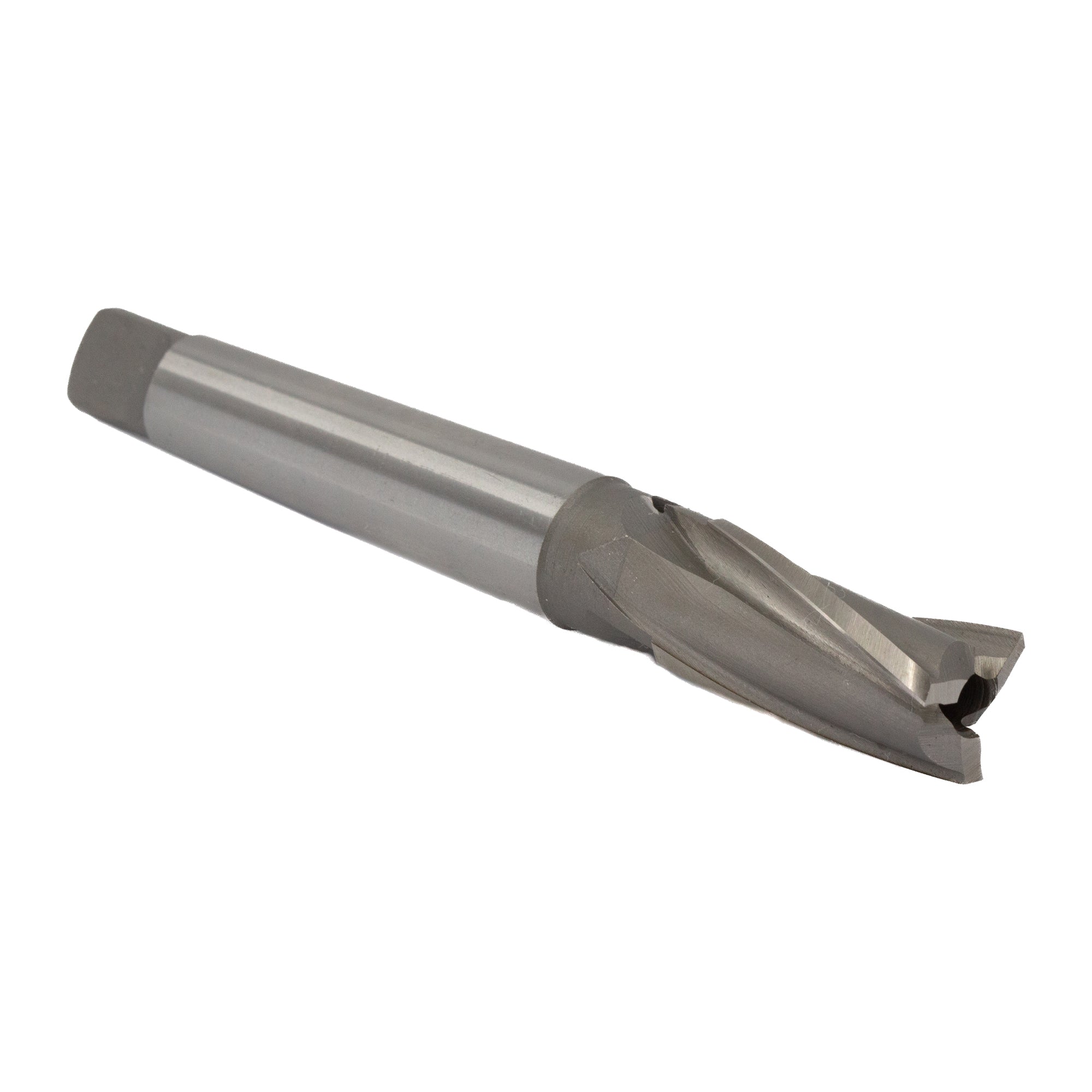

9/16" X 3/16" Pilot Hole HSS Taper Shank Counterbore

Product Description
Counterboring is the enlargement of a portion of a hole that has previously been formed. If the counterbored portion is shallow (1/8" or less), the operations is usually known as spot-facing; for example, a flat seat for a bolt head or nut. If, on the other hand, the hole is enlarged to a considerable depth, it is designated as counterboring. These counterbores are made of two-piece construction, having an integral shank and counterbore-cutter, and a pilot that is interchangable, which provides flexibility in the use of the tool.

Brand Drill America
Part Number DEWCBRTS9/16
Body Dia 9/16"
Material High Speed Steel
Pilot Dia 3/16"
Shank Size 1MT
Shank Type Taper
Finish Uncoated (Bright)
Number of Flutes 3
Length 4-5/16"
