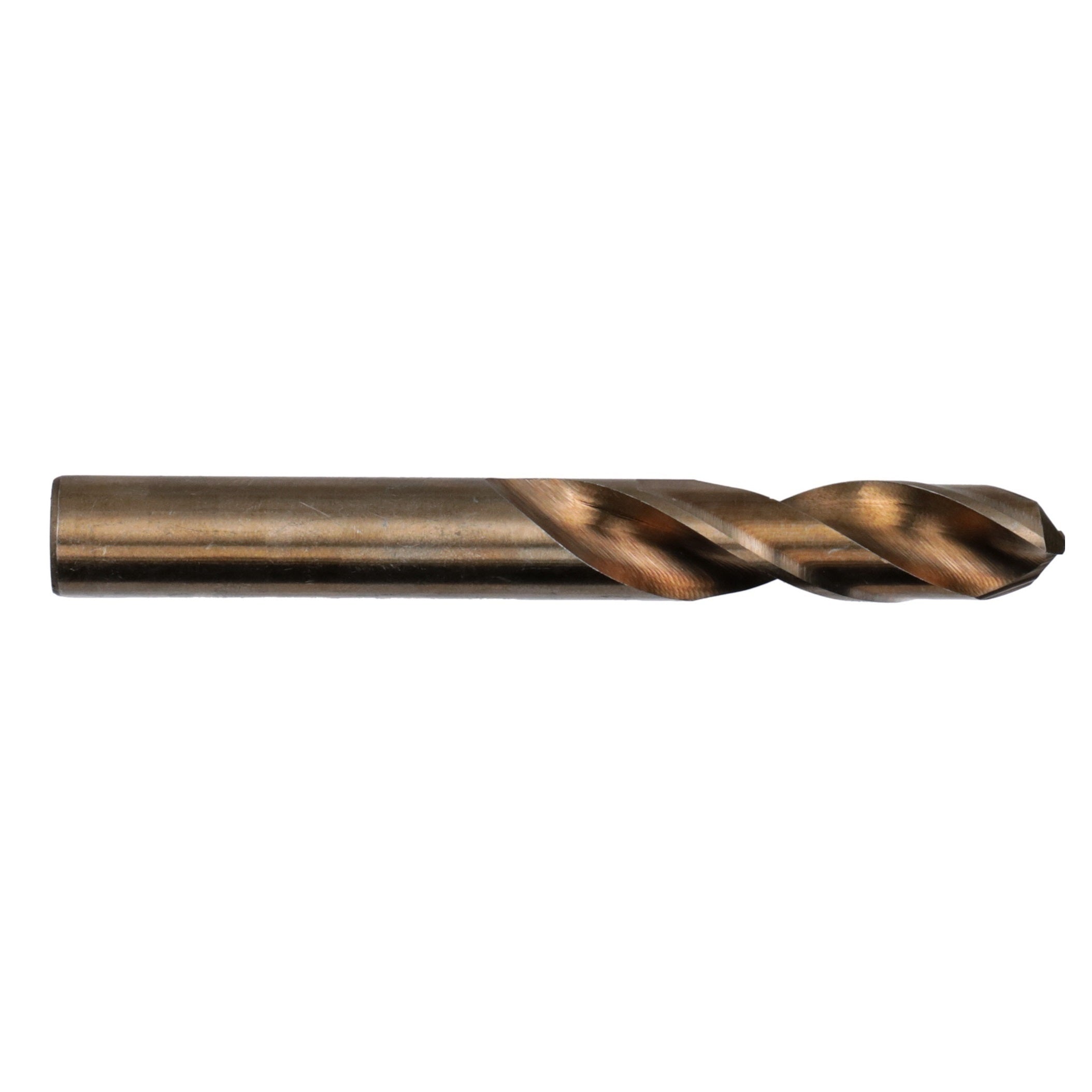

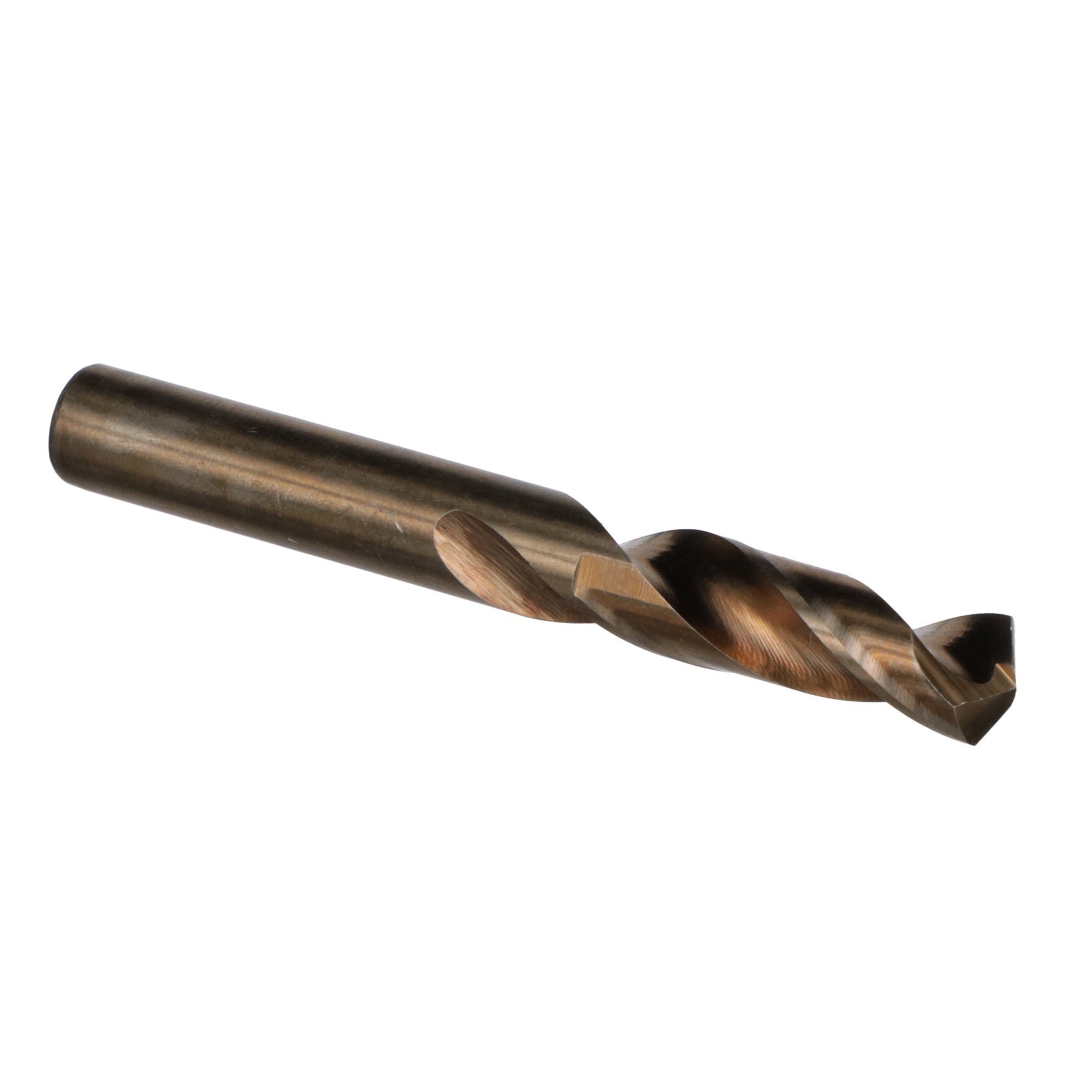

#22 Cobalt Split Point Stub Drill Bit

Product Description

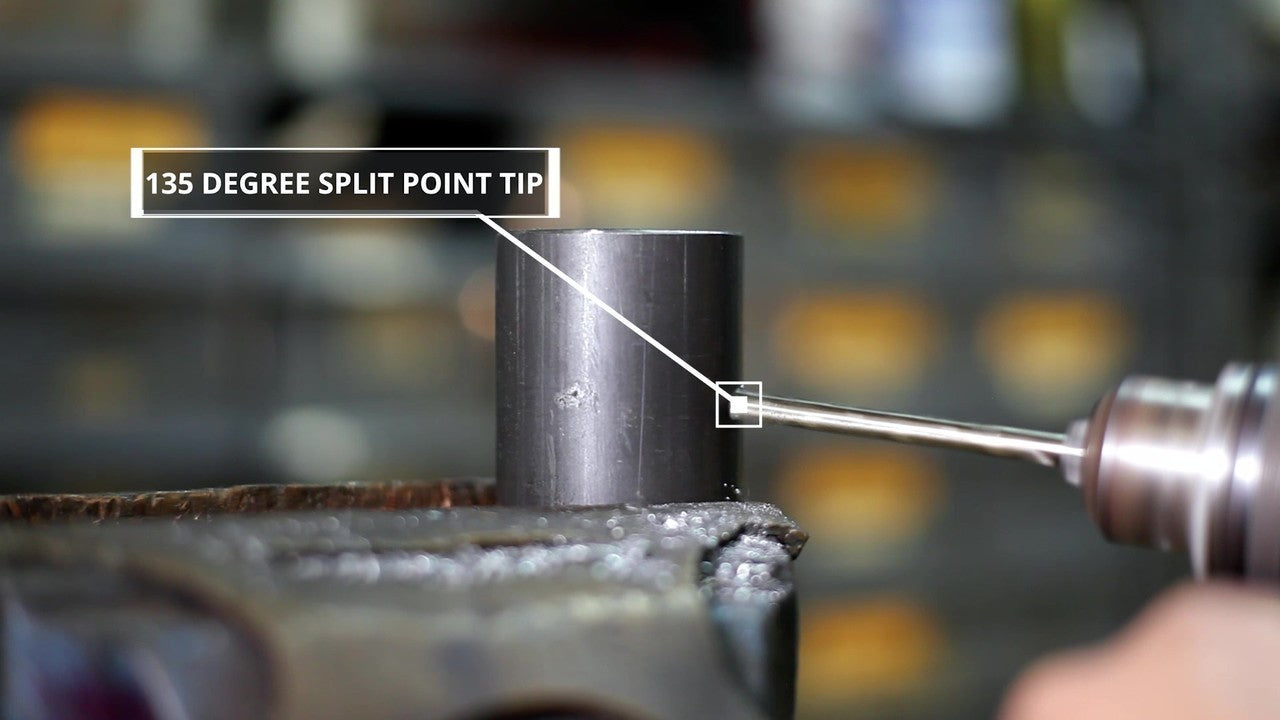

Cobalt screw machine drills (also know as stub or stubby drills) are manufactured to Aerospace Standard 907. The 135 degree split point is self-centering and reduces thrust. Ideal for portable or machine drilling. Short, rugged construction performs well in a broad range of materials in the iron and steel families. Screw machine drills are popular in the automotive and construction industries. They are often used in screw machine setup where spindle clearance is limited. Sizes smaller than 1/16 and larger than 1/2 have the 118 degree standard point

Brand Drill America
Part Number D/ASTCO22
Size #22
Material Cobalt
Finish Gold Oxide
Flute Length 1-1/16"
Length 2-1/8"
Point Split Point
Shank Type Round
Point Angle 135
Number of Flutes 2
